1. Alternate methane gas/light oil burner.
2. Two-stage operation (high/low flame).
3. Air-gas mixing at blast-pipe and high pressure mechanical atomisation of fuel using nozzle.
4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5. Maintenance facilitated by the fact that the mixing unit and the atomisation unit can be removed without having to remove the burner from the boiler.
6. Maintenance facilitated by the fact that the mixing unit and the atomisation unit can be removed without having to remove the burner from the boiler.
7. Equipped with one flange and one insulating seal for boiler fastening.
8. Combustion air intake with air flow adjustment device.
9. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
10.Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
11.UV ultraviolet phototube detects flame.
12.Electrical plant protection rating IP40.
Products

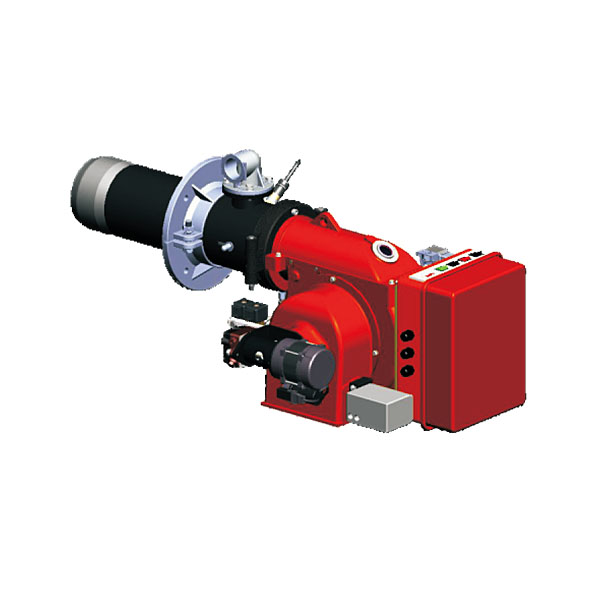

BT35GL/40/100G LRTwo-stage light oil&gas dual burners
Product Model
BT35GLR



power | Model | Art No. | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
130~340 | BT35GLR | 201 23 103 | 220V 50Hz | 0.37+0.15 | 870x620x440 | 56 |

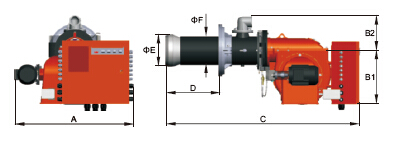

Model | A | B1 | B2 | C | D | E | F | N | L | I(I1) | 圖號 | M |
mm | mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | Φmm | - | M | |
BT35GLR | 537 | 253 | 105 | 780 | 140~258 | 155 | 133 | 160 | 200~244 | 215 | 圖 1 | 4-M12 |
BT40GLR



power | Model | Art No. | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
210~438 | BT40GLR | 201 23 104 | 380V 50Hz | 0.37+0.15 | 860x680x600 | 95 |
Model | A | B1 | B2 | C | D | E | F | N | L | I(I1) | 圖號 | M |
mm | mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | Φmm | - | M | |
BT40GLR | 595 | 300 | 197 | 1085 | 140~315 | 160 | 159 | 170 | 233 | 290 | 圖 1 | 4-M12 |
BT100GLR



power | Model | Art No. | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
348~910 | BT100GLR | 201 23 105 | 380V 50Hz | 1.1+0.37 | 1050x900x710 | 132 |
Model | A | B1 | B2 | C | D | E | F | N | L | I(I1) | 圖號 | M |
mm | mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | Φmm | - | M | |
BT100GLR | 800 | 360 | 247 | 1300 | 175~360 | 200 | 194 | 210 | 276 | 320 | 圖 2 | 4-M12 |
