1. Alternate methane gas/light oil burner.
2. Single stage operation (on/off).
3. Air-gas mixing at blast-pipe and high pressure mechanical atomisation of fuel using nozzle.
4. Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5. Maintenance facilitated by the fact that the mixing unit and the atomisation unit can be removed without having to remove the burner from the boiler.
6. Manual flow adjustment.
7. Equipped with one flange and one insulating seal for boiler fastening.
8. Combustion air intake with air flow adjustment device.
9. Sliding boiler coupling flange to adapt to head protrusion of the various types of boilers.
10.A Monophase electric motor to run fan and another to run the pump.
11.Flame presence check by photoresistance and ionisation electrode.
12.Electrical plant protection rating IP40.
Products

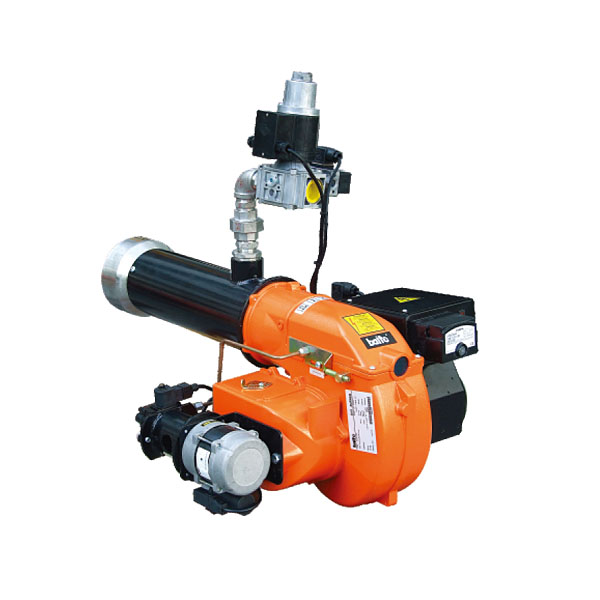

BT20/35GLDual fuel burner light oil&Gas
PDF viewProduct Model
BT20GL
| power | Model | Art No. | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
| 80～230 | BT20GL | 201 23 101 | 220V 50Hz | 0.37+0.11 | 870x620x440 | 42 |

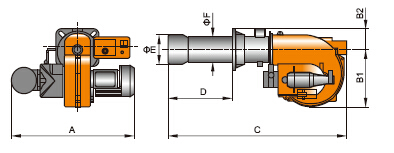

| Model | A | B1 | B2 | C | D | E | F | N | L | I | M |
| mm | mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | Φmm | M | |
| BT20GL | 537 | 253 | 93 | 807 | 120~280 | 135 | 114 | 140 | 170～210 | 185 | 4-M10 |
BT35GL
| power | Model | Art No. | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
| 130～340 | BT35GL | 201 23 102 | 220V 50Hz | 0.37+0.15 | 870x620x440 | 45 |
| Model | A | B1 | B2 | C | D | E | F | N | L | I | M |
| mm | mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | Φmm | M | |
| BT35GL | 537 | 253 | 105 | 800 | 105~258 | 155 | 133 | 160 | 200～244 | 215 | 4-M12 |
