1 . The power range of BTFA series full-automatic separated type burner is 42MW,it can be equipped with the suitable fan according to the combustion power,boiler back pressure and different fuel.Both the program controller and flame detector have 24-hour self detection of flame signal.
2.The full-automatic fuel oil / gas dual-fuel burners are specially designed for the supremely accurate adjusting ratio,therefore,BTFA series burner has wide range in the control.
3.Fuel atomization type:optional high pressure mechanical atomization or low pressure medium atomization.
4.The main oil pipeline is mounted at the burner body,individua heavyl oil heater and oil pump unit,including the oil pump , electric heater and oil filter.
5.According to the boiler hearth size,the flame length and diameter may be set by adjusting the angle of secondary air cyclone plate. This function is specially provided for the different manufacturers boiler hearths.
6.There are kinds of control modes, the standard configuration is the mechanical scale, however, it can be set according to the different operation demands,for instance,
the electronic-scale oxygen controller, electronic-scale control dual-fuel combustion system, etc...
Products

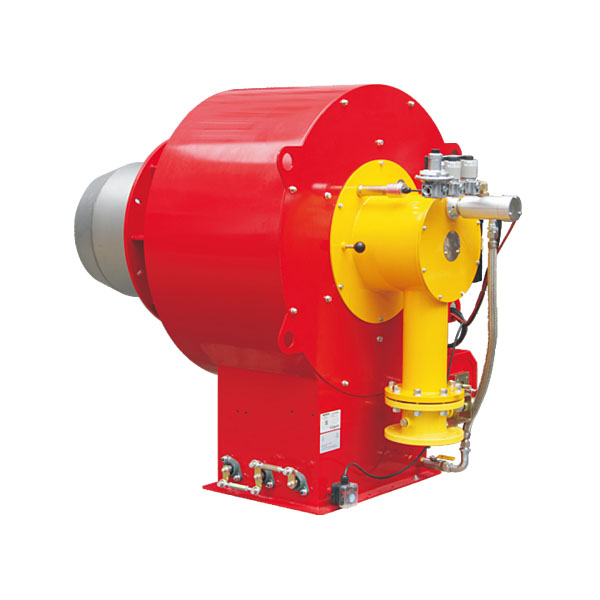

BTFA SeriesSplit type Gas & Heavy oil Burner BTFA6GH...45GH
Product Model
技術參數表
power | Model | Art No. | Max Viscldity | Power supply |
Fuel(Heavy oil) kg/h |
Gas Nm3/h |
Packing size cm |
954~6042 | BTFA6GH | 202 27 150 | 60 | 380V 50Hz | 85~539 | 68~628 | 1553x1358x1279 |
1100~8230 | BTFA8GH | 202 27 151 | 60 | 380V 50Hz | 98~734 | 91~832 | 1553x1358x1279 |
1400~11160 | BTFA10GH | 202 27 152 | 60 | 380V 50Hz | 125~995 | 142~1127 | 1840x1400x1520 |
2232~14511 | BTFA15GH | 202 27 153 | 60 | 380V 50Hz | 200~1293 | 226~1557 | 1930x1340x1630 |
3590~22500 | BTFA25GH | 202 27 154 | 60 | 380V 50Hz | 320~2005 | 303~2273 | 2180x1580x1890 |
5500~34500 | BTFA35GH | 202 27 155 | 60 | 380V 50Hz | 490~3080 | 556~3485 | 2530x1710x1970 |
7000~42000 | BTFA45GH | 202 27 156 | 60 | 380V 50Hz | 624~3743 | 707~4242 | 2980x2040x2340 |
